MasterPiece Arms DS9 Open – 9mm Major MPA

Description

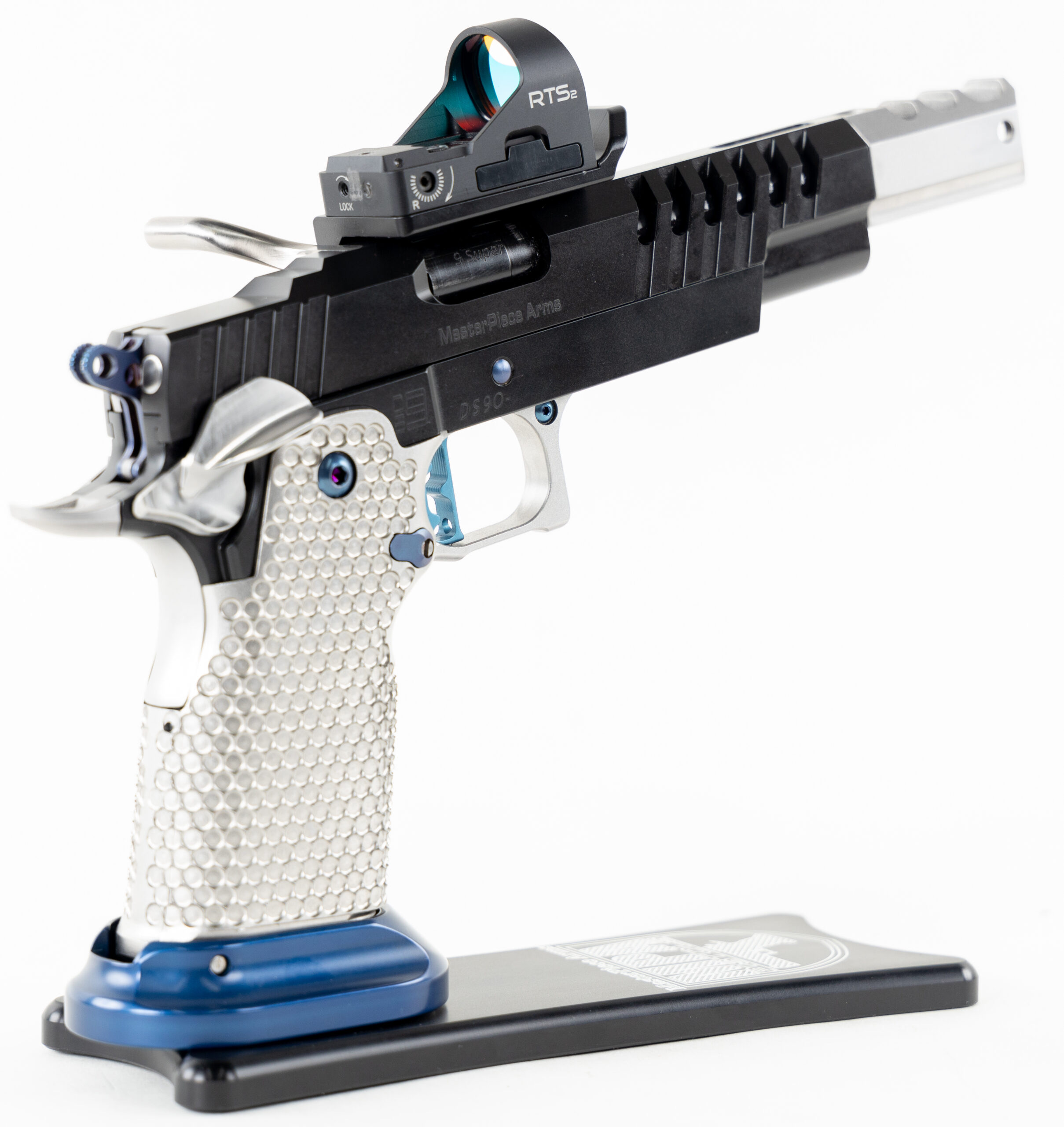

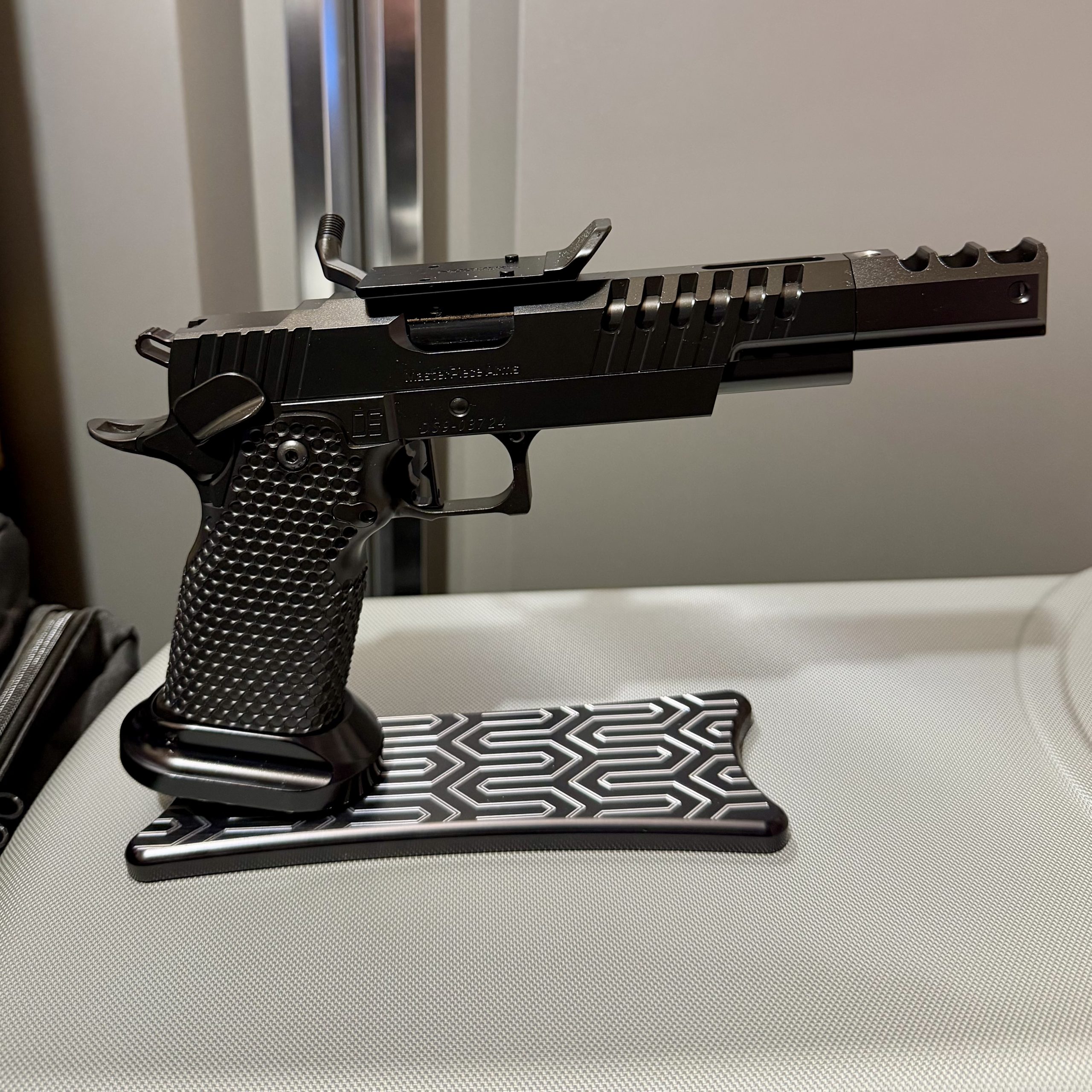

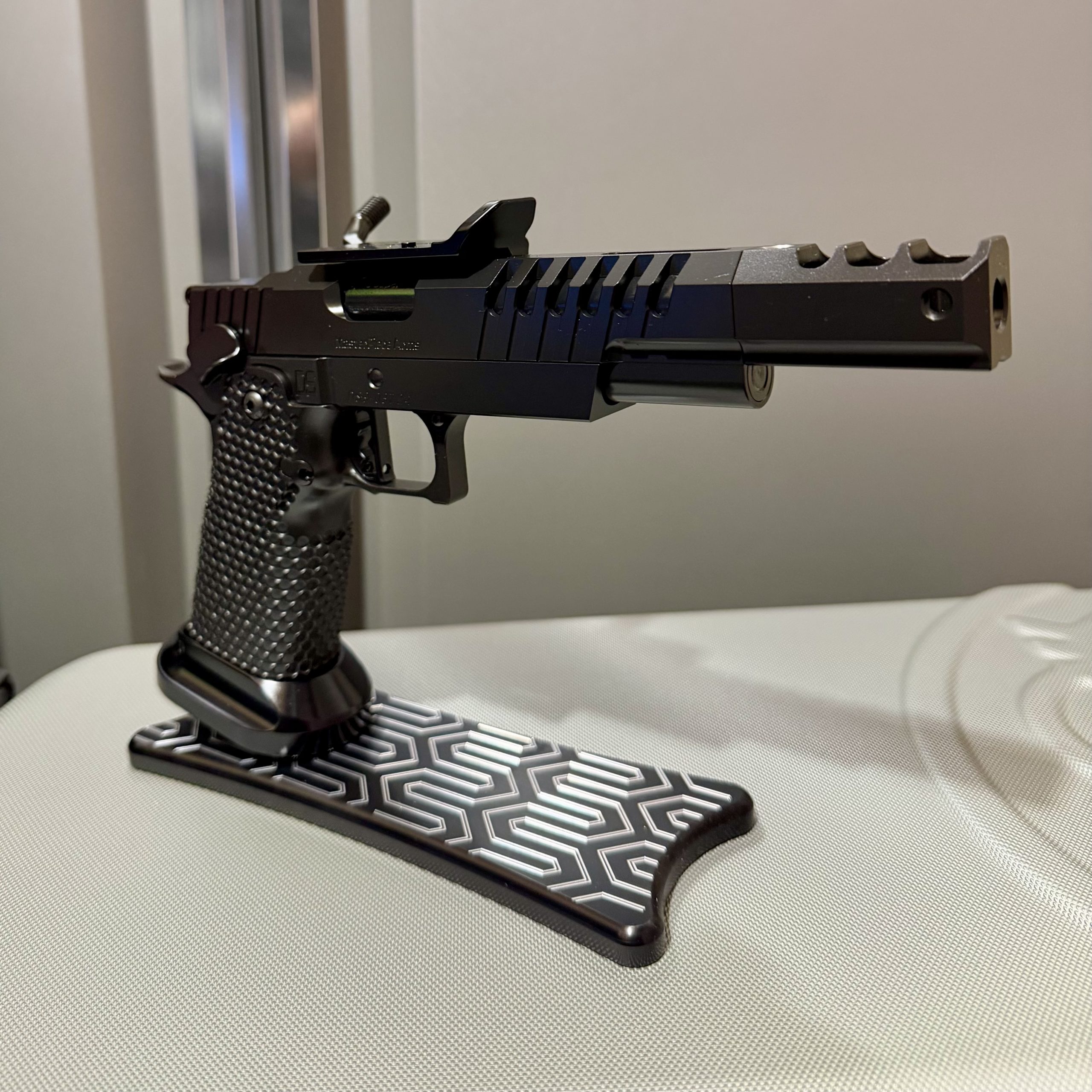

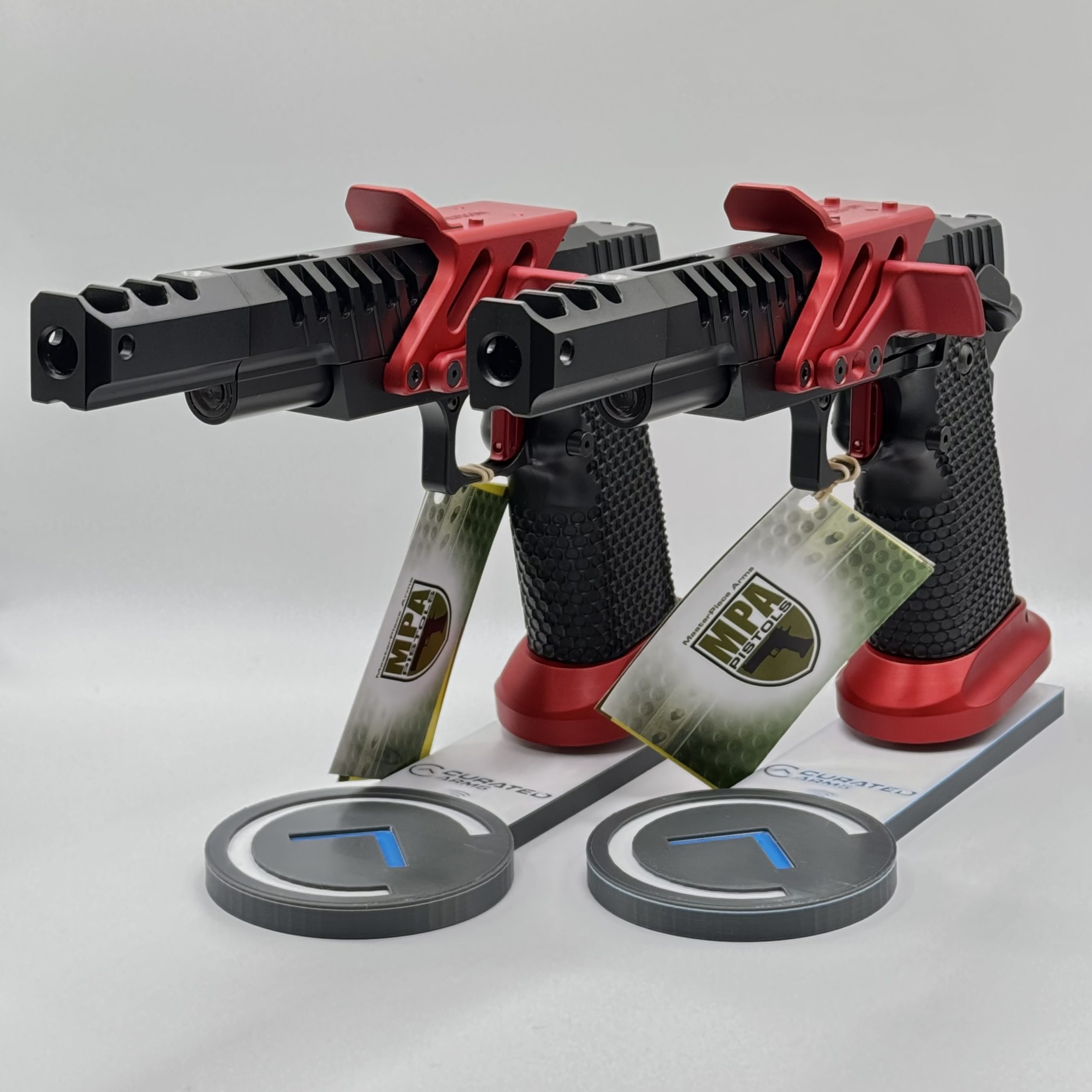

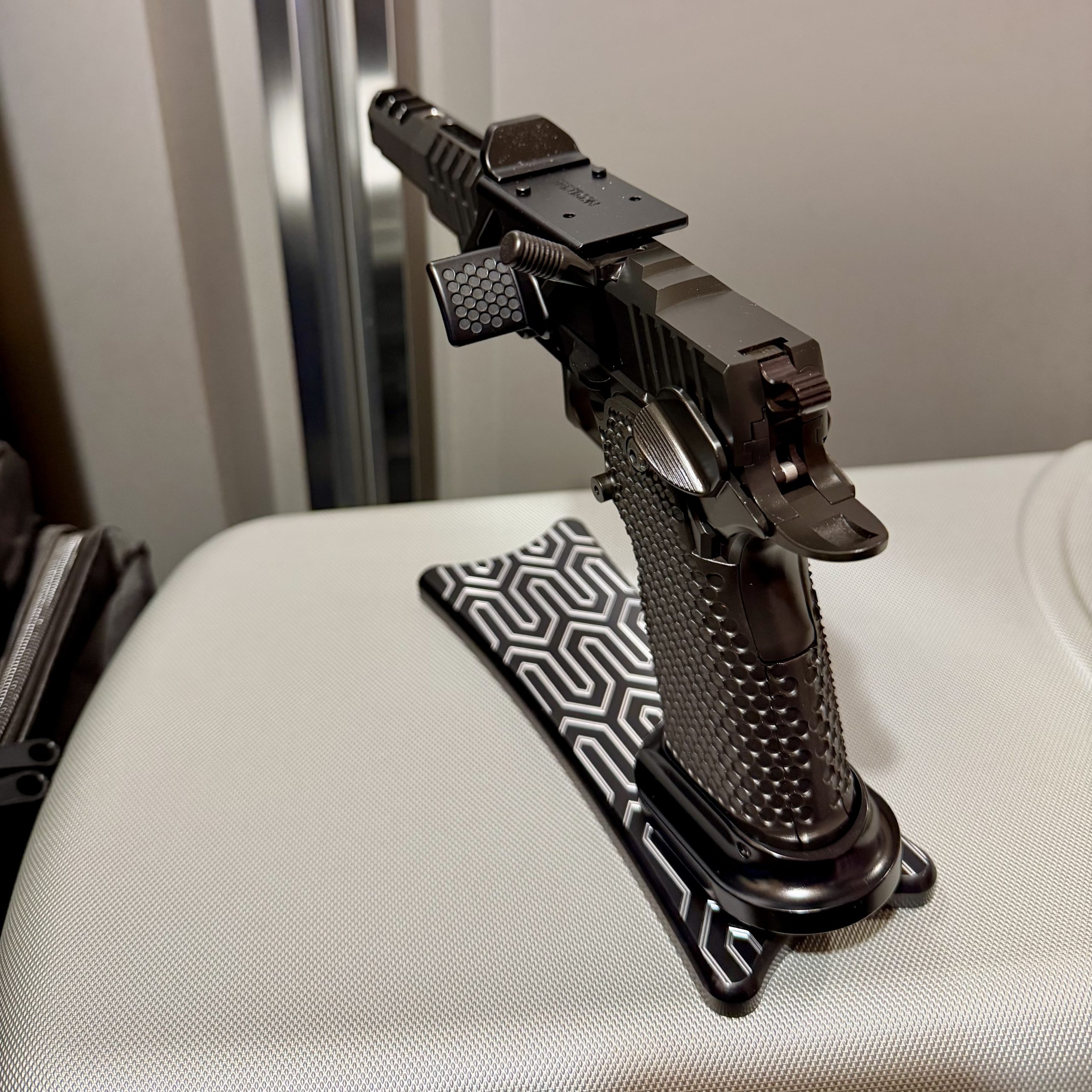

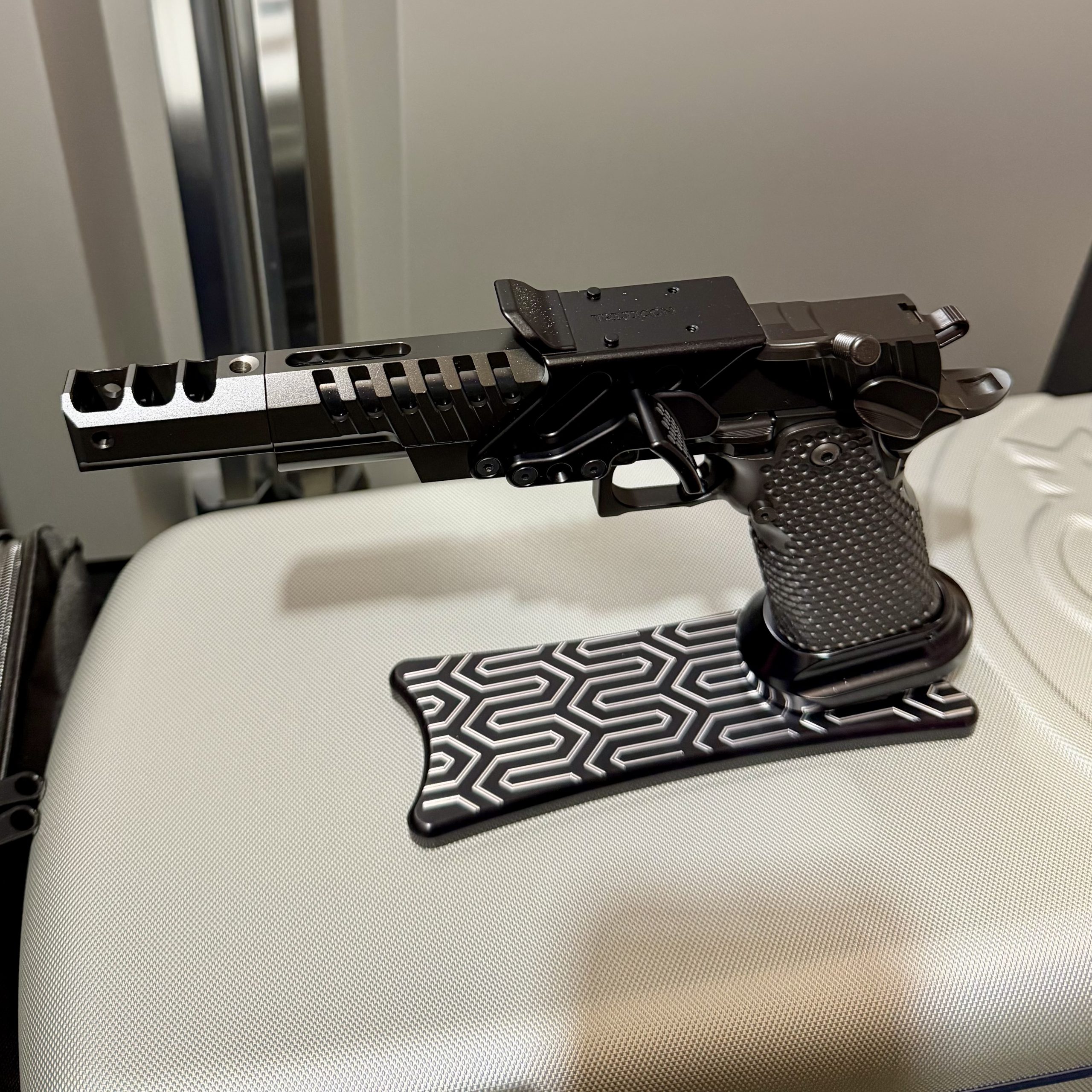

MPA DS9 DL Comp Open Pistol

This pistol configuration is based on the preferences of our MPA Team Shooters, David Lyell and Travis Tomasie.

This Race gun is a finely tuned pistol, designed to be run in Open Division in USPSA/IPSC Features include:

• 9mm Major Ammunition
• Custom Designed 3-Port Compensator
• MPA Designed and Produced Optics Mount (CMore RTS2, Sig Romeo 3, Leupold DPP (Vortex ST/XL), & Vortex Razor pattern) and Thumb Rest
• Left Side Removable Slide Racker (available in Black or Silver only)
• Competition Tuned Trigger
• Competition Beavertail
• High Ride Shielded Ambi Thumb Safety (available in Black or Silver only)
• Custom Ported Barrel w/5 – 7/32″ ports
• 17-4 Stainless Steel Aggressive Texture Grip
• Custom Trigger Shoe Length (Short, Medium, Long)

This DS Open Pistol can be configured in a multitude of color combinations as follows:

• Frame, Slide – Black Nitride Finish
• Control Parts – Black, Silver, Gold, or Blue
• Barrel/Compensator Finish – Black or Silver
• Magwell Finish – Black, Silver, Gold, Blue, or Red Anodized
• Trigger Shoe – Black, Silver, Gold, Blue, or Red
• 17-4 Stainless Grip – Black Nitride or Matte Silver
• Currently available in 9mm Major

The Left Handed Version will come with:

• Right Side Thumb Rest
• Right Side Slide Racker
• Right Side Mag Release

Please contact Wes for your build configuration: Info@CuratedArms.com

Specific Features for the DS9 Open include:

• Caliber: 9mm (Major Power Factor)
• Aggressive Texturing on the MPA 17-4 SS grip
• MPA Designed Optics Mount with Thumb Rest
• Competition Magwell (for 141mm mags or larger – incorporates a self centering radius design)
• (x1) 171mm & (x1) 141mm 9mm MBX Comp Magazines
• Ideal for USPSA/IPSC Open Division

Standard Features:

• Hand Lapped Frame to Slide Fit
• Special Nitride SS Grip
• All parts machined from Barstock and Billet. No MIM, Castings, or Forgings
• All Parts machined in USA. Here are the components machined by MPA: Frame, Slide, Barrel, BeaverTail, Ambi-Safety, Slide Stop, Firing Pin Stop, Ejector, Magwell, Stainless Grip, Sear, Hammer, Disconnector, Guide Rod, Reverse Plug
• Incredible Accuracy and Reliability
• Competition Ready
• Lifetime Warranty

Specifications:

• Design: 9mm Wide Body, Double Stack 1911
• Frame: Steel, Mid-length dust cover
• Slide: 5″ Lightened & cut for slide racker & barrel ports
• Grip: MPA Machined 17-4 Stainless Steel Grip Aggressive Grip Texture
• Comp: 17-4 SS, progressive 3-port configuration
• Hammer: MPA Hammer, Sear, and Disconnector
• Trigger Shoe: MPA Machined (Short, Medium, Long Versions Available)
• Trigger Pull: 2.0 lbs
• Springs: ISMI 7lb Recoil & 17lb Mainspring, EGW sear spring
• Magwell: MPA Competition Magwell
• Barrel: Hand fitted 5″ MPA 416R Vacuum HT Stainless Threaded Bull Barrel
• Guide Rod: 1 Piece Stainless
• Titanium hammer strut & mainspring cap
• XL Firing Pin
• MBX Extreme Magazines: 171mm & 141mm
• Type of Pistol: Magazine Fed Semi-Auto
• Ammunition: 9mm (Major Power Factor)
• Safety: High Ride Shielded Ambi-Thumb Safety
• Finish: Black Nitride
• Overall Length: 10.5” (Comp to Beavertail)
• Height of gun: 7.3” (Magwell to Top of Optic)
• Weight:  3.5lb.

***ONLY FOR USE IN THE MPA DL COMP OPEN GUN***

• 9mm Major Load Data
• 124/125gn projectile
• 9.8gn Accurate No.7 powder
• 1.180″ oal
• Small Pistol Magnum/Small Rifle Primer
• Produces 171-172pf
